Bias Cutter
Vinayaga Engineering offers wide range of Bias Cutters which include Low Table Bias Cutter, High Table Bias Cutter, Low Angle Bias Cutter for radial tyres, Vertical Bias Cutter etc. Quality and Productivity will be at par with the industry's best offerings.

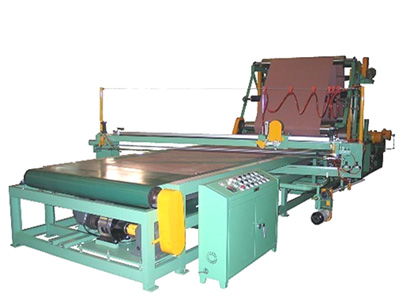

Low Table Horizontal Bias Cutter

Standard Specifications
Model / Specification
VN-LTBC-1
VN-LTBC-1M
VN-LTBC-2
VN-LTBC-2M
Suitability
Industrial Tire, Motorcycle Tire
Nylon cord cutting
Cutting Angle
45 ~ 90
Fabric Width
60"
52"
Belt Width
63"
55"
Cutting Rate
20 pcs / min
Bed Width
69"
61"
Speed of conveyor
21 M. / min
Cutting Width
70 mm ~ 2000 mm
Type of Let-off
32 mm Inner hole, Automatic type
Type of wind-up
32 mm Inner hole, Automatic type
Max. Dia. of Fabric
1000 mm
Motor
5 HP for Belt conveyor, 2 HP for let-off unit 1/4 HP for knife
Knife Carrier
Rodless cylinder / Timing Belt
Cutting angle adjust
Motorised
Cutting width control
Auto counter digital type
Compressed air
5 ~ 7 kg/cm 2
Overall dimension
10530 L x 3130 W x 2130 H
10530 L x 2980 W x 2130 H

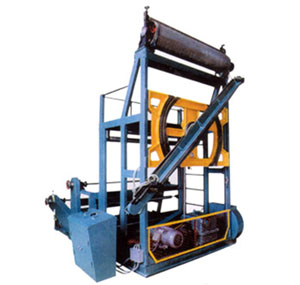

Vertical Bias Cutter
Standard Specifications
Model / Specification
VN-VBC
Suitability
Industrial Tire, Motorcycle Tire
Nylon cord cutting
Cutting Angle
0 ~ 45
Fabric Width
60"
Belt Width
63"
Cutting Rate
20 pcs / min
Knife Carrier
Rodless cylinder / Timing Belt
Cutting angle adjust
Motorised
Cutting width control
Auto counter digital type
Compressed air
5 ~ 7 kg/cm 2
Overall dimension
3150 L x 3130 W x 3200 H
