    Extrusion

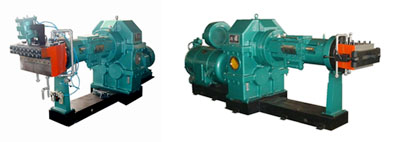

    Hot Feed Extruder
    Vinayaga Engineering offers Plain Barrel type Cold Feed Extruders suitable for Tread Extrusion. The screws are properly heat treated for long life. Standard model comes with double head to minimize stoppage losses. The barrel is jacketed for temperature control. Heads for tread extrusion can also be supplied.

    Standard Specifications
    Model
    VHFE-150
    VHFE-200
    		 VHFE-250
    Screw dia.(mm)
    150
    200
    250
    L/D
    5
    5
    5
    Screw rotational speed (r/min)
    20 ~ 70
    20 ~ 70
    20 ~ 60
    Motor power (kw)
    55
    55
    100
    Overall dimensions L×W×H(mm)
    3585×814
    ×1470
    4549×1140
    ×1750
    4950×1150
    × 1483
    Capacity (kg/h)
    800
    1500~2200
    3500

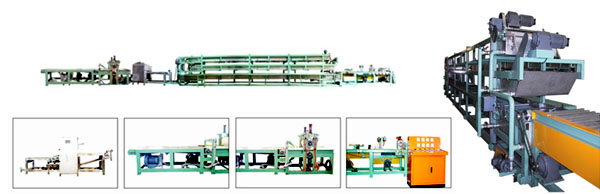

    Tread Extruder Cooling Line

    Vinayaga Engineering offers tread cooling lines with complete features to ensure minimum variation in tread width and length and also the required output. Features include dancer roll controls, effective cooling through double spray, traed marking device, tread measuring device, under tread lining, cementing devices, high speed, high accuracy skivers, etc.


    Standard Specifications
    Model
    VE-TL-120
    VE-TL-50
    		 VE-TL-30 VE-TL-24
    Suitability
    TB, LT, PC, MC
    LT, PC, MC,SC
    MC, SC
    		MC, SC
    Effective Cooling Length
    120
    55
    32
    		 21
    Conveyor total length
    70
    45
    35
    		 18
    Tread Width
    800
    650
    450
    		 450
    Tread Thickness
    50
    50
    30
    		 30
    Cutting Angle
    20° ~ 35°
    Cutting Accuracy
    ± 2mm
    Conveyor Speed (Max)
    25 m/min
    Skiver Cutting Speed
    ~ 20 treads / min
    Length Accuracy Control
    <10% thru Dancing Roller Control

    Standard Features
    Take away conveyor with air cylinder Upward Conveyor with dancing roll
    Stretch roll conveyor with dancing roll control
    SS Cooling trough (intralox belt) 3-tier
    Size marking device (optional)
    Downward Conveyor with dancing roll
    Color line device (optional)
    Festoon loop control with photo switch
    Tread edge cutting device (optional)
    Tread Skiver
    Shrinkage conveyor
    Spongollerse R
    Continuous weighting scale
    High Pressure Blower
    Cementing device
    Weighing Scale
    Under tread device
    Booking Conveyor
