    Tyre Building

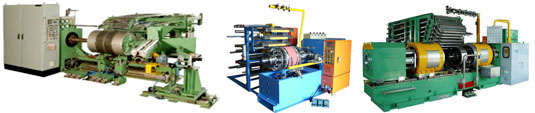

    Tyre Building Machines - Manual, STB, BTU types
    Vinayaga Engineering offers wide range of tyre building ranging manual type with inertia collapse drum, Semi Auto radially collapsible drums of both Finger and Bladder types. All type of servicers rack, turret, cassette etc. can be supplied as per customer preference

    Standard Specifications
    Model / Specification
    V2W
    0812
    VPC
    1218
    VTB
    1824
    VTB
    1824C
    APPLICABLE TYRE
    2/3
    Wheeler
    2 Wheeler/
    PCR / Light Truck
    Truck & Bus
    Truck & Bus
    BEAD RANGE
    8" ~ 12"
    12" ~ 18"
    18 - 24.5
    (Single)
    17 - 24.5
    (Single)
    20-22 (Double)
    20 - 24 (Double)
    TYRE CONSTRUCTION
    Bias
    Bias
    Bias/I StageRadial
    Bias/I Stage
    1st Stage Radial
    Radial
    TYPE OF DRUM Manual Inertia type Manual Inertia type
    Manual Inertia type
    Manual Inertia type
    Finger Turnup (STB) Finger Turnup (STB)
    Bladder Turnup (BTU) Bladder Turnup (BTU)
    DRUM SHOULDER SET RANGE (MM)
    100 - 380
    200 -600
    381 - 737
    457-1017
    MAX. DRUM UNDERCUT FOR DUAL BEAD) MM
    -
    -
    40
    40
    MAX. DRUM CROWN HEIGHT (FOR DUAL BEAD) MM`
    -
    -
    75
    75
    MAX. PLY WIDTH (MM)
    650
    800
    1100
    1500

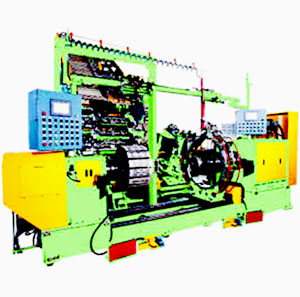

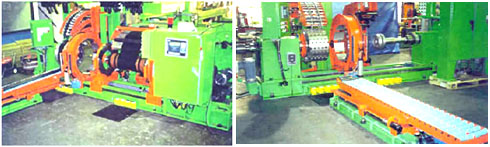

    Second Stage Radial Tyre Building Machine
    Vinayaga Engineering is one of the few tyre machinery manufacturers in India to develop and supply Second Stage Radial Tyre Building machines. We can supply Radial TBMs for PCR, MC etc. with standard features such as B&T drum, cap ply servicer, cap ply winder, high accuracy transfer ring mechanism etc. We can develop customized solution to cater our customer's individual need.

    Standard Specifications
    Model / Specification
    PR2-1215
    MC2-1519
    Applicable Tyre
    PCR (steel, fabric)
    MC (fabric)
    Bead Diameter
    12" ~ 15"
    15" ~ 19" s
    Belt Drum Dia
    Ø445.6 ~ Ø 573
    Ø525 ~ Ø 652.5
    Ø573 ~ Ø700
    Ø652.5 ~ Ø779.8
    Transfer Ring Inner Dia. Range
    Ø450 ~ Ø 700
    Ø525 ~ Ø 870
    Belt Drum Width
    300mm
    300mm
    Height of Drum center above Floor
    1060mm
    1060mm
    Width of Transfer Ring Segment
    200mm
    200mm
    Shaping Drum Range
    Min190 ~ MAX560mm (Shaping Drum)
    Min190 ~ MAX560mm (Shaping Drum)
    Min100 ~ MAX560mm (Shoulder Ring)
    Min100 ~ MAX560mm (Shoulder Ring)
    Feeding Mechanism
    Cart Type / Hanging Type
    Cart Type / Hanging Type
    Width of JLB (slit cap ply)
    8mm to 12mm
    8mm to 12mm
    Tread Width Range
    300mm
    300mm
    Tread Length MAX.
    2500mm
    2500mm
    Electronic Control System
    Servo motor CONTROL Manual / Auto
    Servo motor CONTROL Manual / Auto
    Building rate (approximate)
    90 sec / pc
    90 sec / pc


    Tyre Buiding Accessories

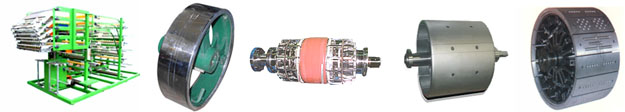

    Vinayaga Engineering offers wide range of Tyre Building Accessories including Servicers, Building drums, Band Inserters, Radial B&T drum, Radial Transfer Rings, Triaxial Stitchers, Strip winding drums / flanges etc
