    Tyre Curing

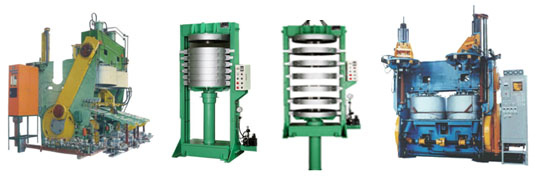

    Tyre Curing Press
    Vinayaga Engineering offers presses of both twin cavity mechanical type and as well as multi-cavity hydraulic type. The Mechanical ones can be either of Tilt Back style or Vertical & Slide Back style. All presses can be supplied with complete Instrumentation Control panel and piping modules. Presses are designed with adequate Safety Factor for long durable life. All boughtout items are of reputed makes for trouble free performance.

    Standard Specifications
    Model / Specificaiton
    VTCP
    -32
    VTCP
    -36
    		 VTCP
    -42    		 VTCP -46 VTCP
    -46D
    General Press Size – inches
    32
    36
    42
    46
    55
    Number of Cavities
    2
    2
    2
    2
    2
    Applicable Segment
    Scooter, AutoRickshaw
    Passenger, Motor Cycle
    Passenger, LCV,ADV
    LCV,ADV
    LCV,ADV Truck
    Tyre Size
    8” & 10”
    8”,10”,16”19”
    upto 19”
    upto20”
    upto20”
    Closing Force – kgs/lbs
    70000
    /154000
    90000
    /198000
    140000
    /300000
    170000
    /374000
    300000
    /660000
    Platen Diameter-mm/inches
    810/32”
    915//36”
    1060/42”
    1170/46”
    1310/55”
    Dome inside Diameter – mm
    815
    925
    1070
    1200
    1400
    Min/Max Mould Height-mm (inches)
    120(5”)
    /250(10”)
    120 (5”)
    /300(12”)
    120(5”)
    /330(11”)
    200 (8”)
    /425(17”)
    250 (10”)
    /450(18”)
    Max Gree Tyre Height-mm/inches
    320/13”
    450/18”
    500/20”
    550/22”
    650/26”
    Connected Load
    9kw
    9kw
    15kw
    17kw
    17kw
    Internal Steam / Hot Water Pressure (Max)
    20 Kg/Sq.Cm
    Shapping Steam Pressure (Max)
    4 Kg/Sq.Cm
    Hydraulic Water Pressure (Max)
    30 Kg/Sq.Cm
    Instrument Air Pressure (Max)
    7 Kg/Sq.Cm

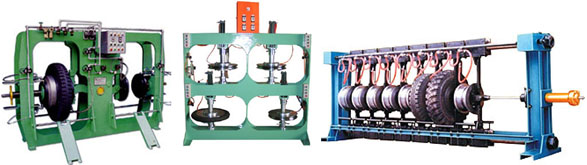

    PCI Cure Inflators

    Vinayaga Engineering offers wide range of PCI Stands suitable for Scooter, Motorcycle, PCR, TBR, LT, Industrial and OTR tyres.
