    Mixing Machinery

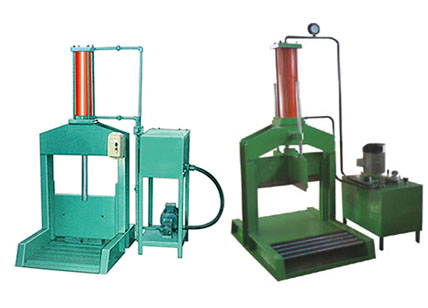

    Bale Cutter
    Vinayaga Engineering offers Bale Cutter for Mixing Rooms. They are built sturdily for heavy duty application. Bales can be cut in two pieces or four pieces with the help of Cross Blade.

    Standard Specifications
    Model / Specification
    V-8
    V-16
    Width (mm)
    660
    1000
    Stroke (mm)
    680
    680
    Diameter of the piston (mm)
    150
    200
    Time Taken by the Stroke (seconds)
    16 ~ 25
    10 ~ 25
    Power (KW)
    5.5
    5.5
    Overall Dimension (LxWxH)
    1900×720×2580
    2240×720×2580
    Weight (kg)
    1500

    2000

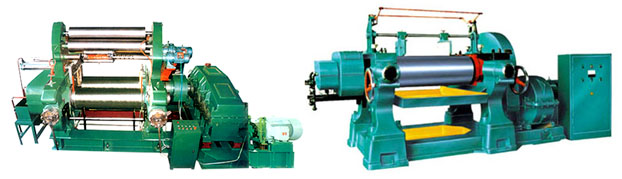

    Mixing Mills
    Vinayaga Engineering offers Mixing Mills which can used as Dump mills below Mixers, Warmup / Feeding mills for Calenders & Extruders and compounding / remixing mills. Rigidity of the frame / structure can be relied upon for tough operating conditions. The chilled cast iron rolls have uniform thickness, the bearings are centrifugally casted and the connecting gears are efficiently heat treated for long trouble free life. Mills are supplied with unidrive (non-bull gear type). Blender Bars (both hydraulic and mechanical type can be supplied for mills used for mixing purpose.

    Standard Specifications
    Model / Specification
    VK-360
    VK-400
    VK-450
    VK-560
    Working diameter of rolls (mm)
    360
    400
    450
    560
    Working length of rolls (inches)
    32
    36
    42
    60
    Working linear speed of front roll(m/min)
    16.25
    18.65
    24.5
    27.7
    Max gap (mm)
    10
    15
    15
    15
    Capacity per.batch(kg)
    20-25
    18-35
    25-50
    50-65
    Driving motor power(kw)
    30
    37
    55
    95
    Overall dimension (mm)
    L
    3940
    4250
    5200
    6120
    W
    1780
    1850
    2380
    2280
    H
    1740
    1870
    1770
    2000
    weight (t)
    5670
    7600
    13000
    22000

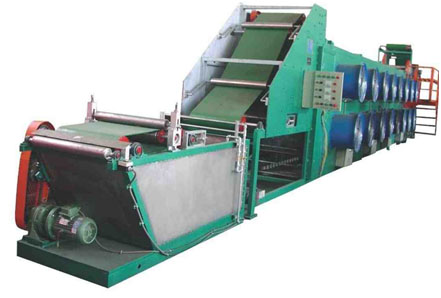

    BatchOff Unit
    Vinayaga Engineering offers Batch Off Units for mixing units. Standard features include separant applying, air cooling, drying, cutting and wig-wag stacking. Optional features include sampling, batch marking. PLC based control system is provided for minimum manual intervention.

    Standard Specifications
    Model / Specification
    VPG-600
    VPG-800
    Max.Rubber sheet width (mm)
    600
    800
    The thickness of the rubber sheet (mm)
    10
    12
    Temperature over room temperature
    10
    15
    Linear speed of taking-in conveyer (m/min)
    25
    35
    Linear speed of sheet hanging chain (m/min)
    ~1
    ~1
    Hanging height of the sheet hanging bar (mm)
    1000-1500
    1000-1500
    Number of cooing fans Sets
    12
    20
    Total power (kw)
    15
    30
    Overall dimensions(L*W*H) mm
    14000*4500
    *3500
    17000*4700
    *3600
    weight (t)
    10
    15
