    Tube Machinery


    Rubber Strainer

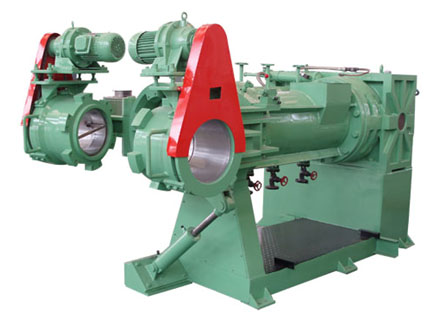

    Vinayaga Engineering offers extruder type strainers for straining inner tube butyl compound. The screws are properly heat treated for long life. Standard model comes with double head to minimize stoppage losses. The barrel is jacketed for temperature control.

    Standard Specification
    Model
    VS 160
    VS 200
    Width (mm) Screw diamter(mm)
    160
    200
    DC Motor Power (Kw)
    75
    110
    Capacity (kg/hr)
    600
    1000
    L/D ratio
    5:1
    5:1

    Cold Feed Extruders

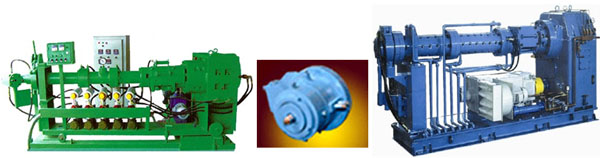

    Vinayaga Engineering offers Plain Barrel type Cold Feed Extruders suitable for Butyl Inner Tube Extrusion. The screws are properly heat treated for long life. Standard model comes with double head to minimize stoppage losses. The barrel is jacketed for temperature control. We can also recondition used Pin Type Extruders.

    Standard Specification
    Model
    VCF
    -45
    VCF
    -60
    		VCF
    -75     		VCF
    -90    		 VCF
    -120    		 VCF
    -150
    Screw diamter(mm)
    45
    60
    75
    90
    120
    150
    L/D ratio
    10:01
    10:01
    12:01
    16:01
    16:01
    16:01
    Screw Speed (rpm)
    6-60
    rpm
    6-60
    rpm
    6-60
    rpm
    6-60
    rpm
    6-50
    rpm
    6-40 rpm
    Electrical Motor Power (hp)
    10
    25
    40
    60
    100
    125
    (D/C or A/C Variable Drive)
    Output Per Hour (Kg/hr) 46-60 100-150 150-200 300-400 600-800 800-1000
    Feeding
    Feed Roll arrangement with spiral undercut
    Extruder Head
    Design as per Customer requirement
    Temp. Controlling Sys. Two Zones Three Zones Three Zones Four Zones Four Zones Four Zones
    Cooling Water Consumption (lpm) 10 25 40 75 90 140


    Tube Extruder Conveyor Line

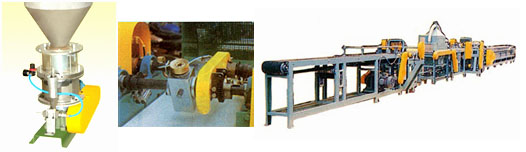

    Vinayaga Engineering features rich cooling conveyor linesl. Features include Inner Dusting, Auto Cutting, Auto Hole Punching, Auto Valve Fixing, Outer Dusting, Size marking etc.


    Standard Specification
    Model
    VTCL 300
    VTCL 500
    Segment Applicable
    MC / PC
    PC / TB / LT
    Min. Tube Length (mm)
    750
    750
    Conveyor Width (mm)
    300
    500
    Conveyor Max. line speed (m/min)
    30
    30

    Hydraulic Splicing Machine

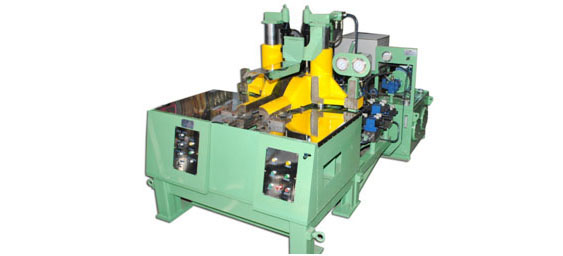

    Vinayaga Engineering offers heavy duty hydraulic type Tube Splicers to achieve best Splicing Strength. Splicers can be supplied suitable for motorcycle, PCR, TBR & OTR sizes. Depending on the tube width variants foe single, double and also triple splicing can be achieved.


    Standard Specification
    Model
    VTS
    20200
    VTS
    80500
    		 VTS
    400700
    Suitability
    MC
    TBR
    		 OTR
    Maximum butting force (kg)
    6810
    6810
    		11350
    Flat tube width range (mm)
    20 ~ 110
    80 ~ 500
    		400 ~ 700
    Maximum double wall thickness (mm)
    13
    13
    		 19
    Minimum flat length of the tube (mm)
    700
    800
    1200
    No. of tubes spliced at a time
    3 / 2
    1
    1
    Table and knife movement guide
    Linear motion guide
    Knife Movement – Horizontal
    Hydraulic proportional control
    Knife Speeds – variable from 0-2 mts/min
    3 Speeds Entry Creep, Cut Medium, Exit Creep, Reverse Fast
    Knife Heats – variable from 40 to 400 deg C
    3 Heats Entry Medium, Cut High, Exit Medium, Reverse Low

    Tube Curing Press

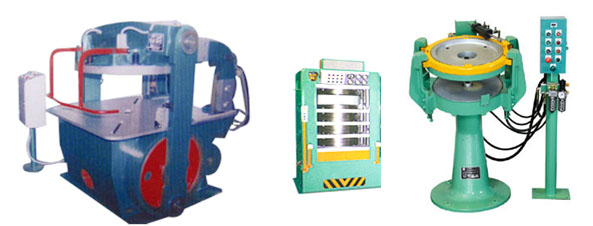

    Vinayaga Engineering offers both Mechanical and Cylinder clamping type press. Care is taken for long life and optimum consumption of Steam and Air. Custom designed platen can be provided for mechanical type presses to utilize the bed space accommodating 2 / 3 moulds. Preformers, steam jacketed moulds can also be supplied. Also available are multi cavity presses.


    Standard Specification
    Model
    VE-
    TBP-1
    VE-
    TBP-2
    		 VE-
    TBP-
    3    		 VE-
    TBP-
    4A     		VE-
    TBP-
    4B     		VE-
    TBP-
    5
    Applicable Segment
    TB
    LT
    LT/PCR
    MC
    MC
    SC
    Typical Sizes
    8.25-0
    ~
    1.00-2
    6.00-2
    ~
    8.25-6
    5.00-0
    ~
    6.50-6
    16" ~ 21"
    4"~21"
    12-1/2"
    ~
    20"
    Mold O.D.
    Ø1220
    mm
    Ø855
    mm
    Ø760
    mm
    Ø760
    mm
    Ø760
    mm
    Ø586
    mm
    Mold I.D.
    Ø380
    mm
    Ø255
    mm
    Ø220
    mm
    Ø340
    mm
    Ø100
    mm
    Ø132
    mm
    Mold Thickness
    320
    mm
    255
    mm
    200
    mm
    170
    mm
    170
    mm
    170
    mm
    Steam Pressure
    10kg/cm 2
    Air Pressure
    7kg/cm 2
